Master Distributor of USI Technologies
Made in America
Reduce downtime. Speed commissioning. Prove compliance.
Accuracy and control
0.3° with MODBUS or 0.5° with 4-20 mA
Interfaces: MODBUS RTU or TCP,
4-20 mA, 0-10 V
Programmable analog feedback on XT
Reliability and endurance
6000+ starts per hour for frequent cycling
Permanently lubricated drivetrain
for low maintenance
SuperCap backup to support a safe
position on power or signal loss
Operating temperature: X Series
-40 to 140°F, XT -22 to 140°F
Safety and environment
X Series hazardous location: Class I,
Division II (Groups A-D)
Enclosures: NEMA 4 for X Series,
NEMA 4X for XT
Mounting: ISO 5211 F07 or F10 on
X Series, 0.625″ Double-D shaft on XT
Contact Hatfield at 800-879-9191 for sizing assistance and a streamlined process from specification to installation.
Built for these Environments

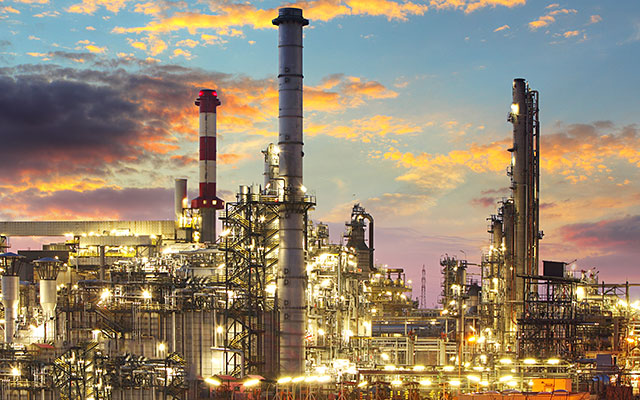

Oil and Gas / Petrochemical
Hazardous-location X-Series with C1D2 (A-D) and 0.3° precision for valve automation.

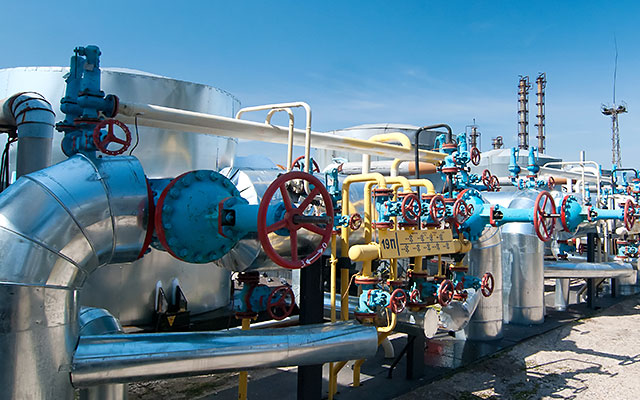

Water and Wastewater
Precise modulating control and programmable feedback for plants and lift stations.

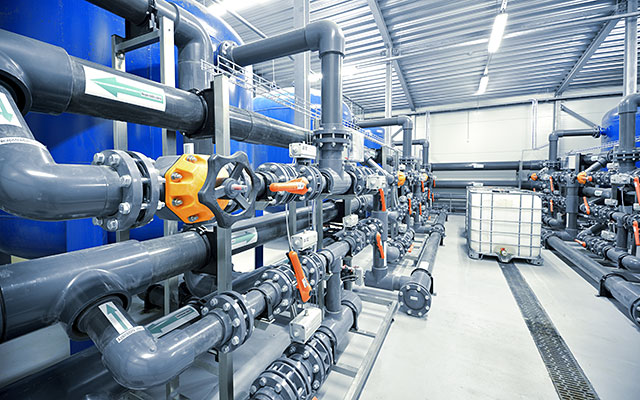

Industrial OEMs
XT actuators and custom controllers for compressors, car wash, and packaging systems.
PRODUCT HIGHLIGHTS

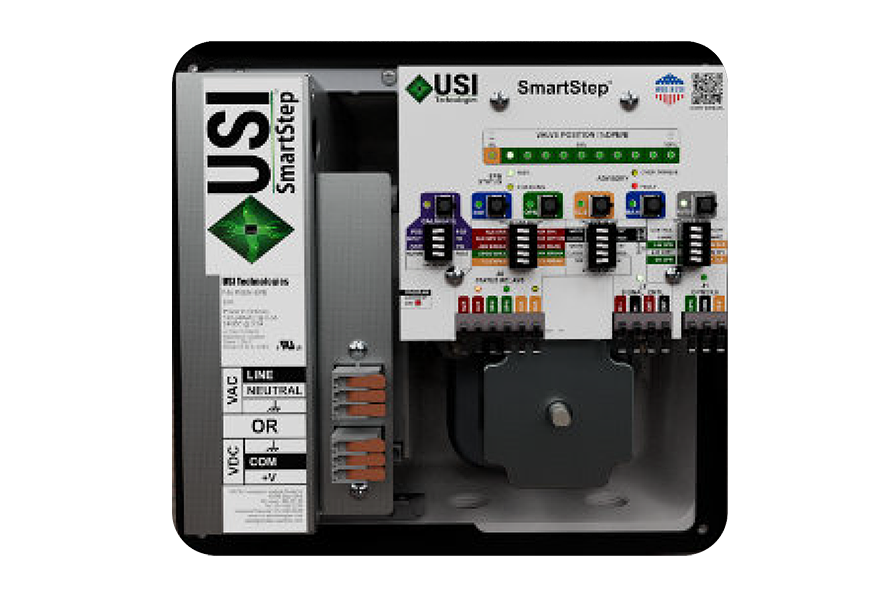

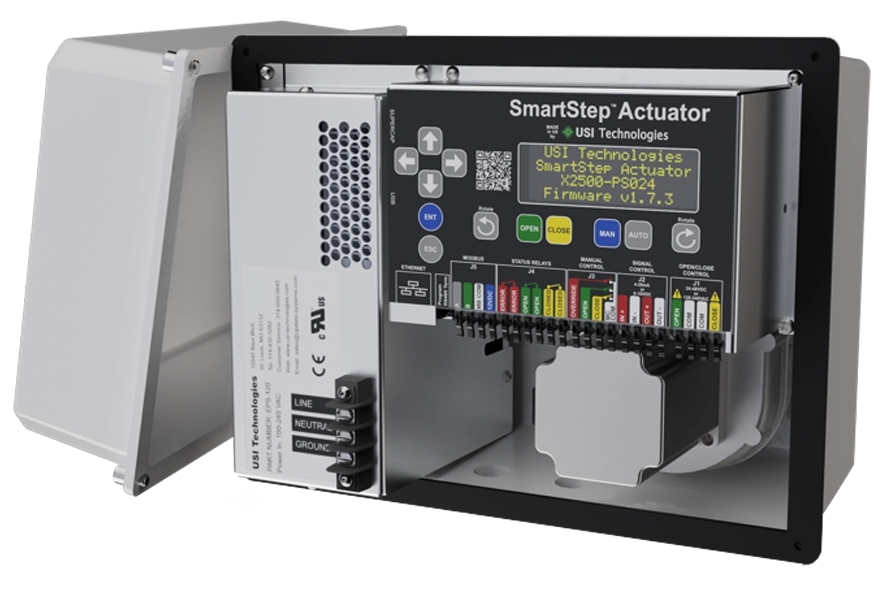

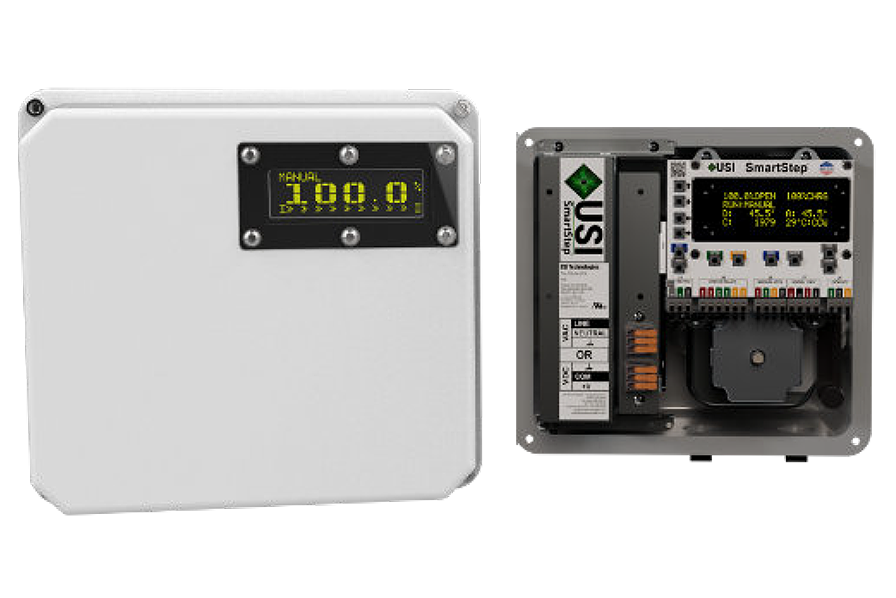

SmartStep™ X-SERIES
Hazardous-location rated as standard, multi-turn capable, and built for continuous duty.
– 0.3° (MODBUS) or 0.5° (4-20 mA) precision
– Up to 5000 in-lb torque, 100% modulation
– 6000+ starts/hour; permanently lubricated drivetrain
– NEMA 4 cast-aluminum enclosure; ISO 5211 F07/F10
– Operating temperature -40 to 140°F; SuperCap backup option
Specifications:
– Torque: 500, 1200, 2500, 5000 in-lb
– Accuracy: 0.3° (MODBUS) or 0.5° (4-20 mA)
– Control: 4-20 mA, 0-10 V, MODBUS RTU/TCP
– Enclosure: NEMA 4 (cast aluminum)
– Mounting: ISO 5211 F07/F10
– Starts per hour: >= 6000
– Temperature: -40 to 140°F
PRODUCT HIGHLIGHTS

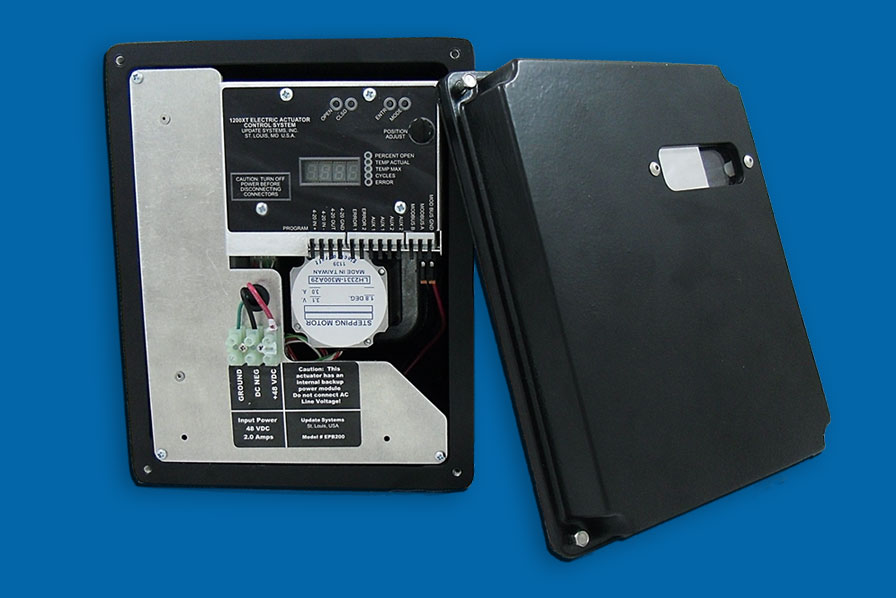

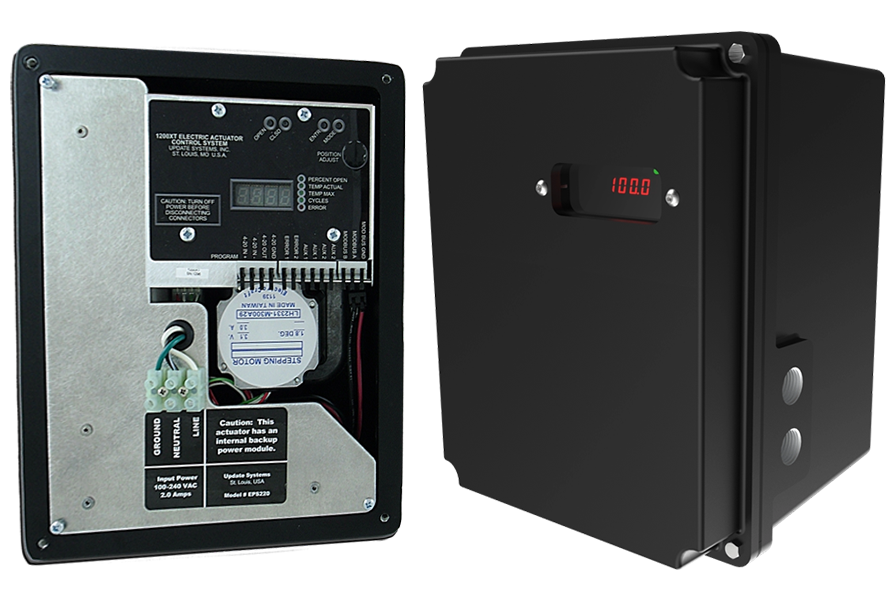

XT-SERIES
Hazardous-location rated as standard, multi-turn capable, and built for continuous duty.
– 0.3° (MODBUS) or 0.5° (4-20 mA) precision
– 6000+ starts/hour; SuperCap backup option
– NEMA 4X enclosure; -22 to 140°F operating range
– Programmable 4-20 mA feedback; 0-10 V or 4-20 mA control
– 0.625″ Double-D shaft for coupler mating
Specifications:
– Torque: 1200, 2500 in-lb
– Accuracy: 0.3° (MODBUS) or 0.5° (4-20 mA)
– Control: 4-20 mA, 0-10 V, MODBUS
– Enclosure: NEMA 4X
– Mounting: 0.625″ Double-D shaft
– Starts per hour: >= 6000
– Temperature: -22 to 140°F
PRODUCT HIGHLIGHTS

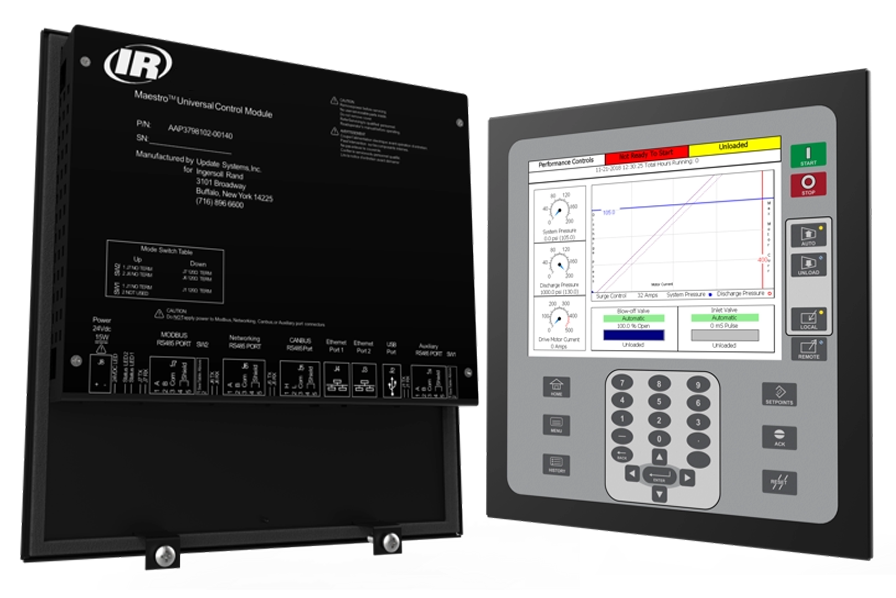

CUSTOM INDUSTRIAL CONTROLLERS
– Displays: Mono or color, 2.5 to 10.5 inches, touch or keypad
– IO: Digital inputs and outputs with expansion modules
– Applications: valves, compressors, car wash, medical, defense, water/wastewater
Specifications:
– Manufacturing: Dual SMT lines; AOI 100% inspection; 100% functional test
– Location: St. Louis, MO
– Design: PC, firmware, and PCB in-house
